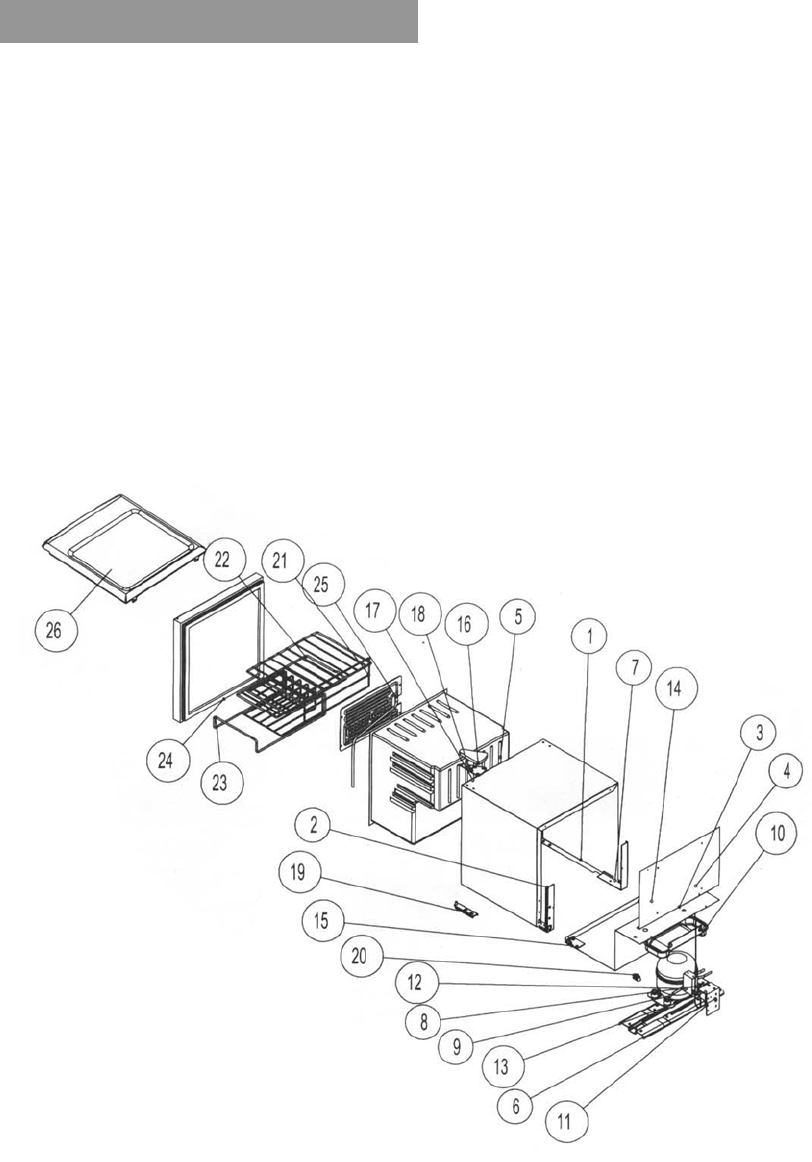

PARTS BREAKSOWN DIAGRAM

14. Left-Foot-Border

15. Right-Foot-Border

16. Low-Door-Hinge

17. Top-Foot-Border

18. Up-Door-Hinge

19. Bottom-Door-Border

20. Power Cord Clip

21. Rack 2

22. Rack 1

23. Rack 3

24. Door

25. Evaporator

26. Plastic Cover

1. Outline-Border

2. Right-Strengthen-Strip

3. Back-Border

4. Bottom-Border

5. Cabinet

6. Com-Fix-Border

7. Left-Strengthen-Strip

8. Compressor-Rubber-Foot

9. Compressor

10. Drip-Tray

11. Thermostat-Border

12. Thermostat-Cover

13. Thermostat
